Kernom's description of the Kernom ELIPSE augmented analog modulation pedal
THE MODULATION PLAYGROUND.
Dive into the world of modulation with the ELIPSE. Seamlessly morph between lush choruses, warm phasers, jet-like flangers, and rhythmic tremolos. Create classic tones or discover entirely new textures—all in one pedal.
The ELIPSE redefines classic modulation, offering seamless, continuous morphing between analog effects—from lush, smooth choruses and warm phasers to jet-like flangers and rhythmic tremolos.
The Kernom ELIPSE opens up a limitless playground for your creativity with Analog warmth and MIDI control.
PLAY WITH YOUR MOOD.
Seamless Morphing.
Transition effortlessly between modulation effects,giving you the flexibility to choose classic tones or craft hybrid, entirely unique sounds.
MOOD 1: TREMOLO.
MOOD 2: ROTARY.
MOOD 3: CHORUS.
MOOD 4: FLANGER.
MOOD 5: PHASER.
MOOD 6: UNIVIBE.
SWIRL.
The Secret Weapon.
The SWIRL control unlocks a legendary secret: blending a slow phaser with any modulation effect to create rich, multidimensional tones. Pushed to its limits, it reveals new overtones, enhanced by an analog drive circuit.
The Kernom ELIPSE takes modulation to the next level!
MIDI PRESETS AND CONTROLS.
With our Analog Morphing Core® technology, ELIPSE integrates digital control over the analog circuit.
Save and recall up to 128 presets, sync with DAWs, and control all parameters via MIDI CC (Tap Tempo & MIDI Clock support).
Connect your expression pedal to the ELIPSE to control any combination of knobs and explore new possibilities.
Use the internal preset accessible via the dedicated footswitch to have access to two sounds at any given time.
Full MIDI compatibility with easy editing features. Save and recall up to 128 different presets.

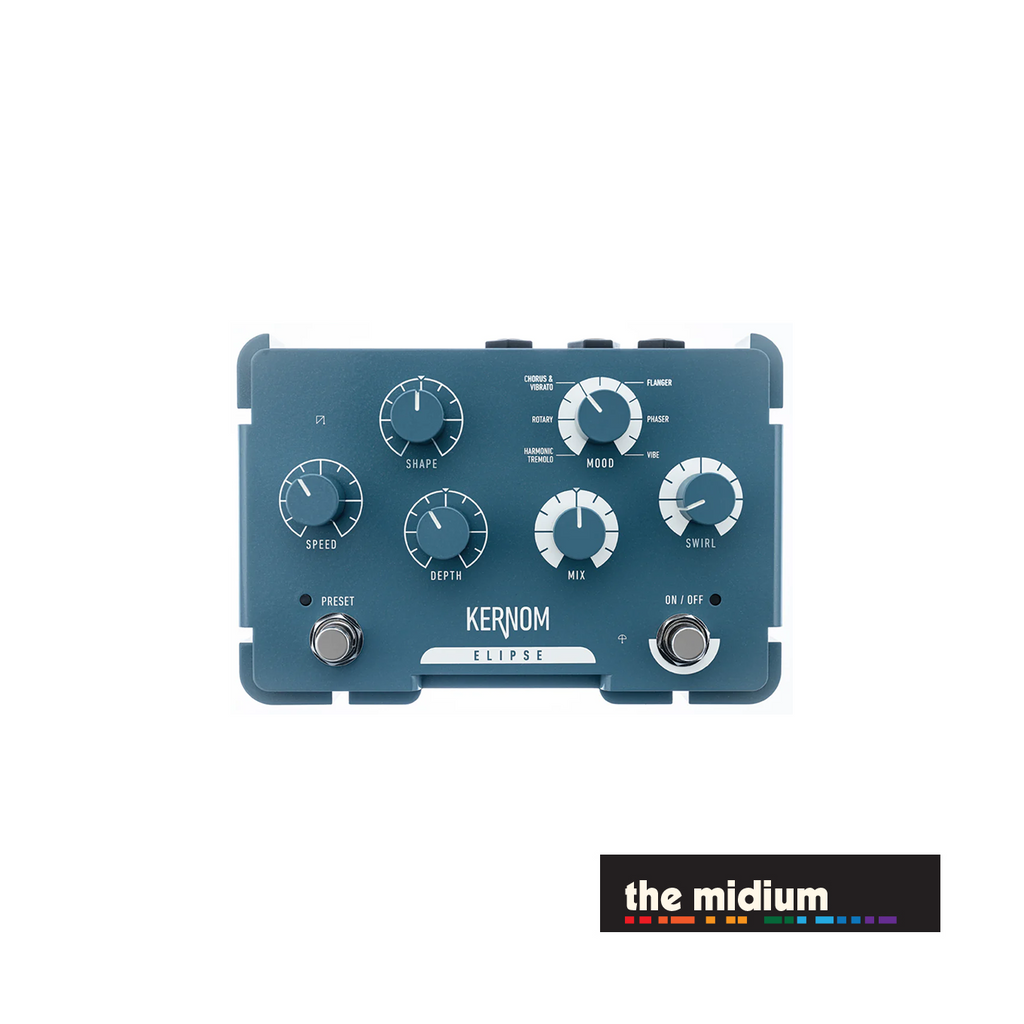

SUMMARY OF CONTROLS, FUNCTIONS, AND CONNECTIONS.
SHAPE.
SHAPE modifies the modulation waveform, with a classic triangular shape at the mid-
position.
MOOD.
MOOD provides access to all the classic and iconic modulation effects with a single knob.
This continuous control allows you to gradually transition between classic effects and create hybrid combinations.
SPEED.
The SPEED adjusts the modulation rate, from ultra slow texture to fast ringing oscillations.
SWIRL.
SWIRL adds a secondary layer to the main effect. The first part of the knob’s sweep
introduces a slow phaser, while the second part adds a drive effect.
DEPTH.
DEPTH controls the intensity of the modulation effect.
MIX.
MIX controls the blend between wet and dry signals.
At the mid-position, it provides a 50/50 mix for classic effects.
PRESET.
1 onboard preset, 128 presets accessible via MIDI.
-
TRUE BYPASS WITH RELAY.
-

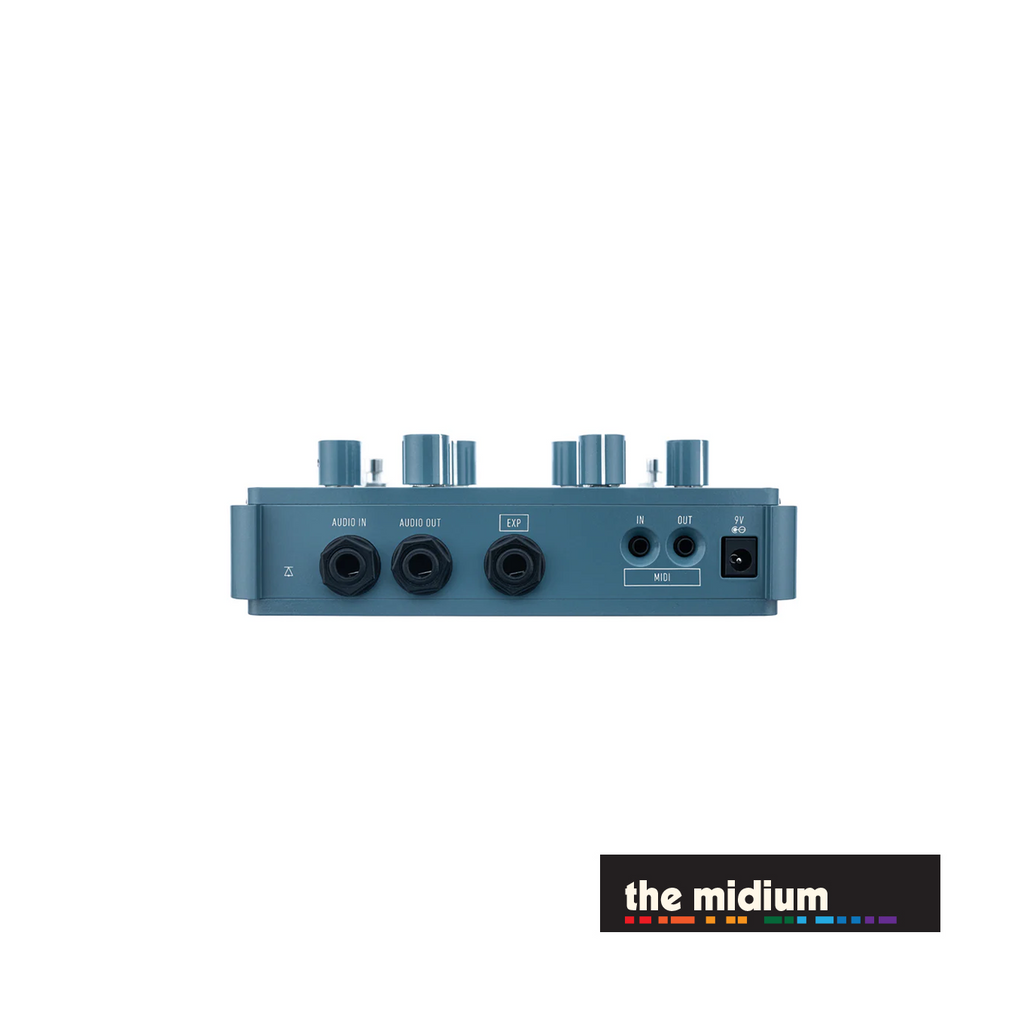

EXPRESSION PEDAL INPUT.
-
MIDI IN AND OUT WITH FULL CONTROL OVER ALL THE PARAMETERS.
SPECS.
INPUT IMPEDANCE: 1Meg Ohm
OUTPUT IMPEDANCE: 100 Ohm
BYPASS SWITCHING: True Bypass (electromechanical relay switching)
DIMENSIONS: 11.2 cm deep x 16.4 cm wide x 5.2 cm tall (4.4 inches deep x 6.5 inches wide x 2 inches tall).
WEIGHT: 850 g (1,8 lbs)
BUILD MATERIAL: 5mm thick aluminium casing with sparkly duck blue and high grade painting surface
CAPABILITIES: Designed for both guitar, bass, synth and studio.
MIDI CABLE REQUIREMENTS: Use a type A mini jack TRS MIDI cable.
POWER ADAPTOR REQUIREMENTS: Use an adaptor (not included) with the following rating: 9VDC center negative. (150mA minimum, 200mA or more recommended.)
