A description of the Roland JUNO-106 currently available for sale through The Midium® Vintage Collection.
THE MIDIUM® CURATOR'S NOTE: Vintage Synthesizer

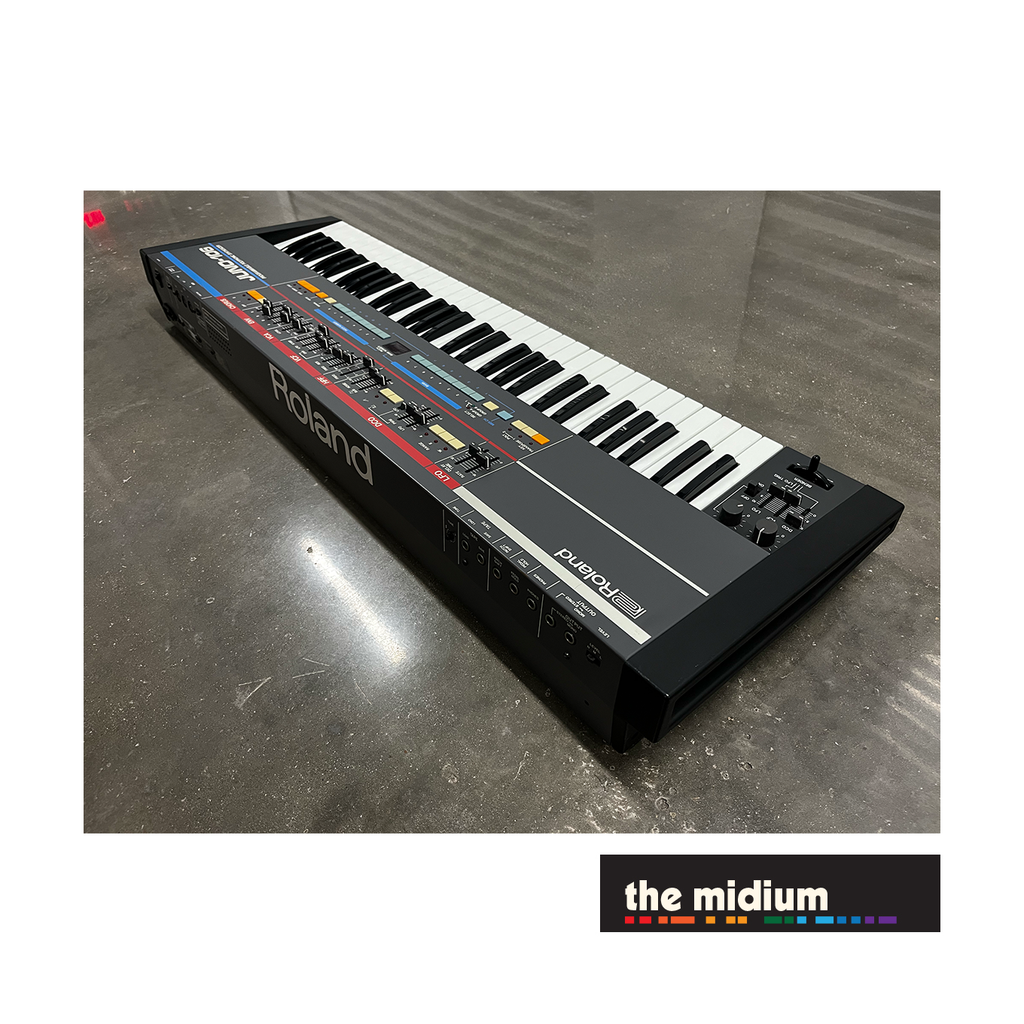

LILLY CAROLINA: This Roland JUNO-106 came to us via an acquisition from the second quarter of 2025. The previous owner explained that they purchased it from the original owner 20+ years ago, and kept it in their studio since then. It was stated by the previous owner that during that time, the JUNO-106 was played as a MIDI module with another controller triggering notes. The Midium® performed a thorough inspection and demo, and after noticing that several buttons were difficult to trigger, The Midium® opted to replace all 32 buttons, making it easy again for the JUNO-106 to register presses. The previous owner also stated that other work, including voice card replacement, fader replacement, PSU reflowing, and battery replacement had been performed by a qualified technician (LA Synth Co) in 2021. Please also note that the first fader in the left-hand control panel stops just a bit short of the lowest marking. This does not affect functionality, and when lowered all the way, the parameter does reach its minimum level. Please see the final photo for visual evidence.
After receiving the Roland JUNO-106, The Midium® determined that a thorough cleaning was also in order, so we opened the synthesizer and proceeded to clean the interior, without removing the keybed, as we worked on the switches. To document this process, The Midium® edited a video that tells the story of all the work we performed on the Roland JUNO-106. The Roland JUNO-106 comes with the power cord and original instruction manual. Please contact us via telephone, email, the contact form, or via DM with any questions, anytime. We would be glad to hear from you!
THE CLASSIC 1980s ROLAND VINTAGE SYNTH SOUND, RESTORED.
THE STATE OF THE SYNTH.
WORKING CONDITION: Excellent (works as expected for a restored synthesizer of 1980s vintage).

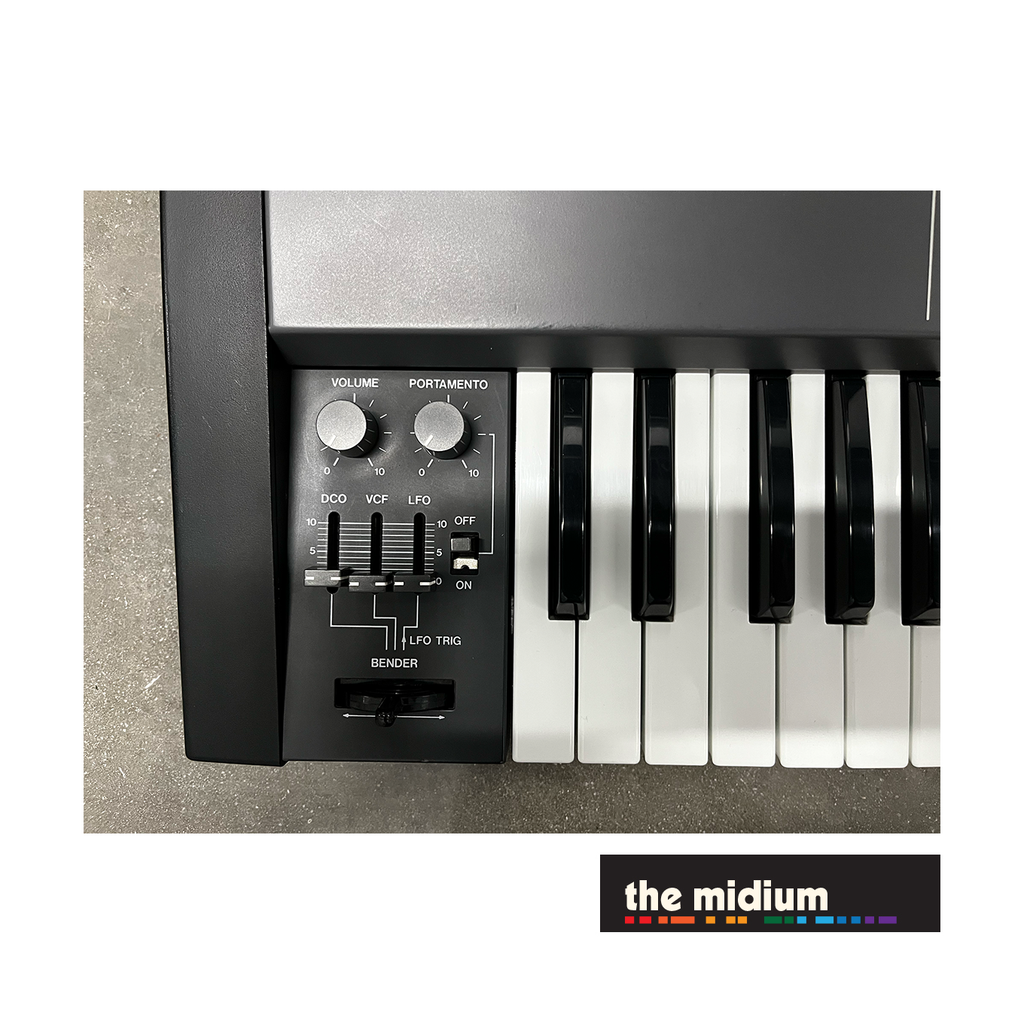

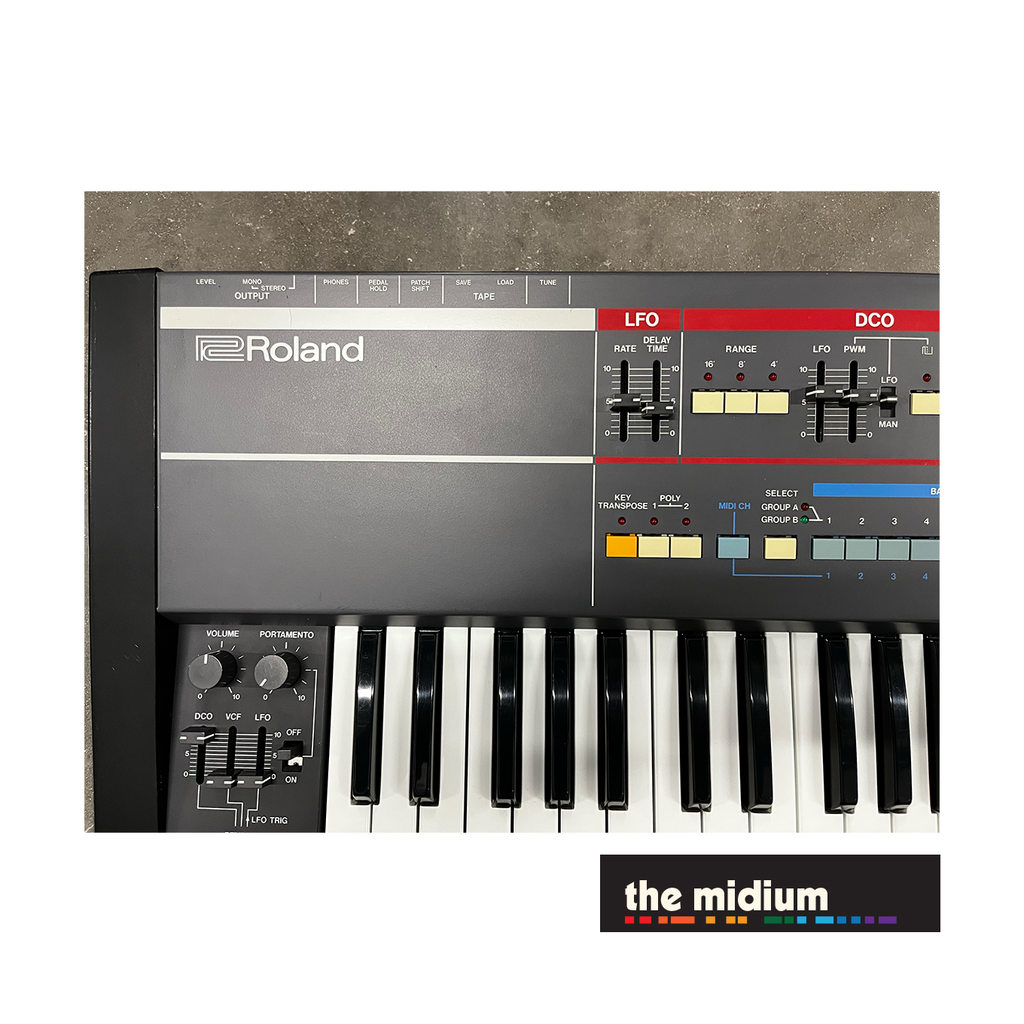

This Roland JUNO-106 has been restored with new voice cards and other service performed as stated above, with all new buttons/switches installed by The Midium®. All controllers are fully responsive. One fader in the lefthand controller section has a very slight shorter travel on the way down than the other two, though functionality is not affected. The chorus circuit is exactly how it was when we received it, so it contains the noise inherent to the Roland chorus.
PHYSICAL CONDITION: Very Good

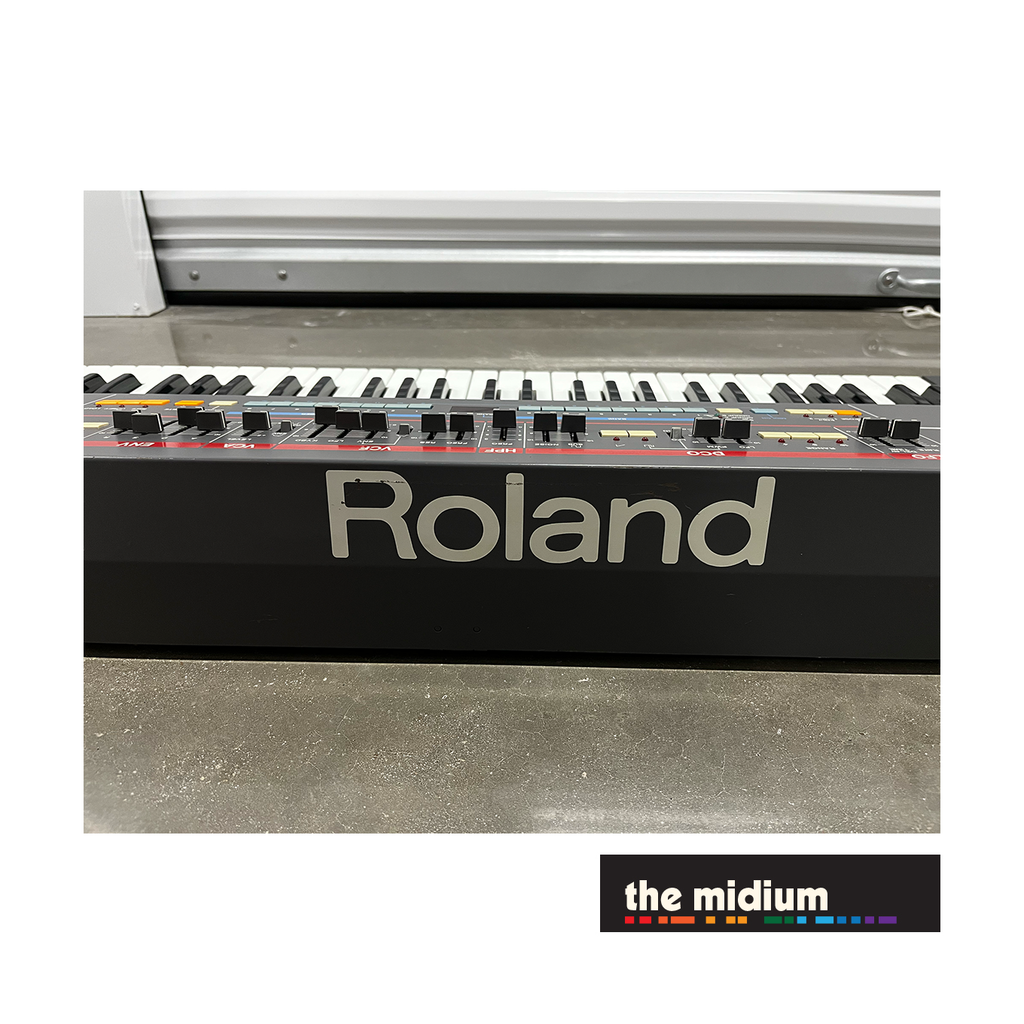

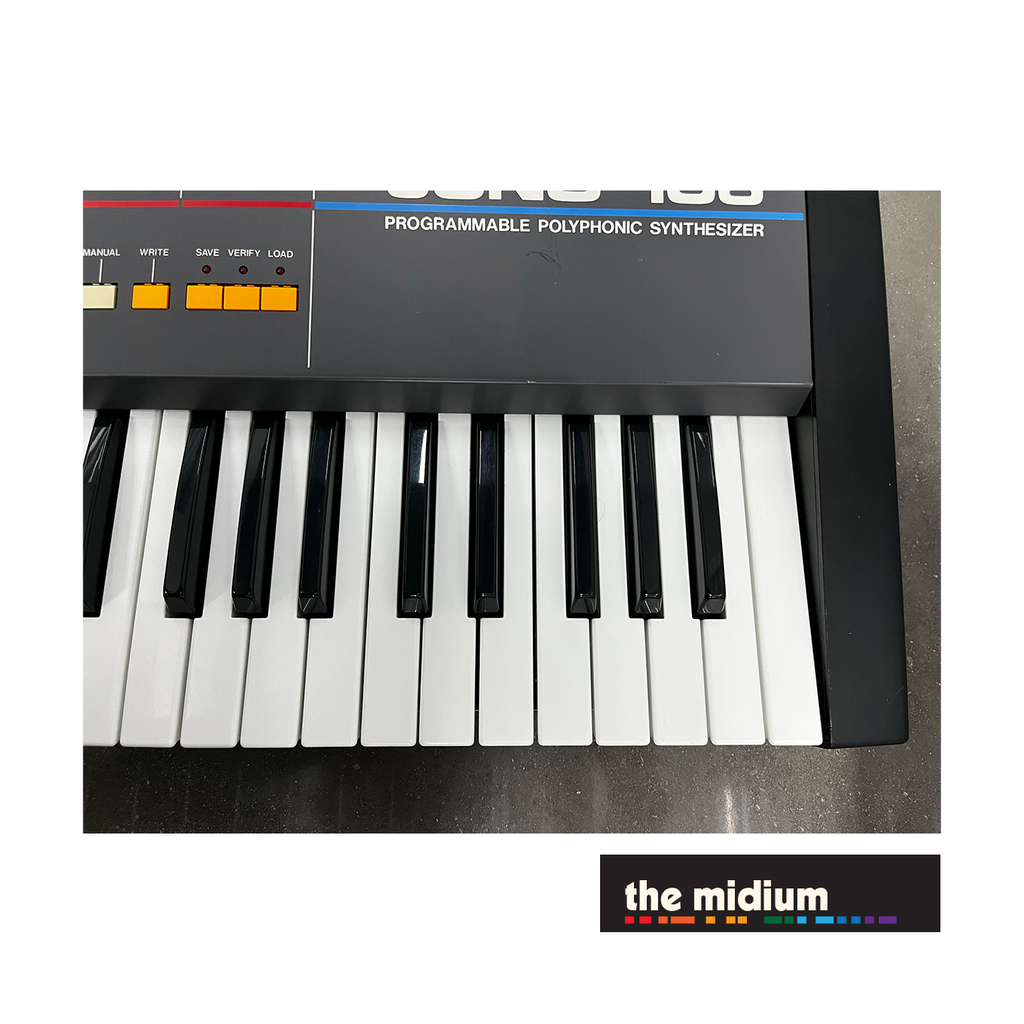

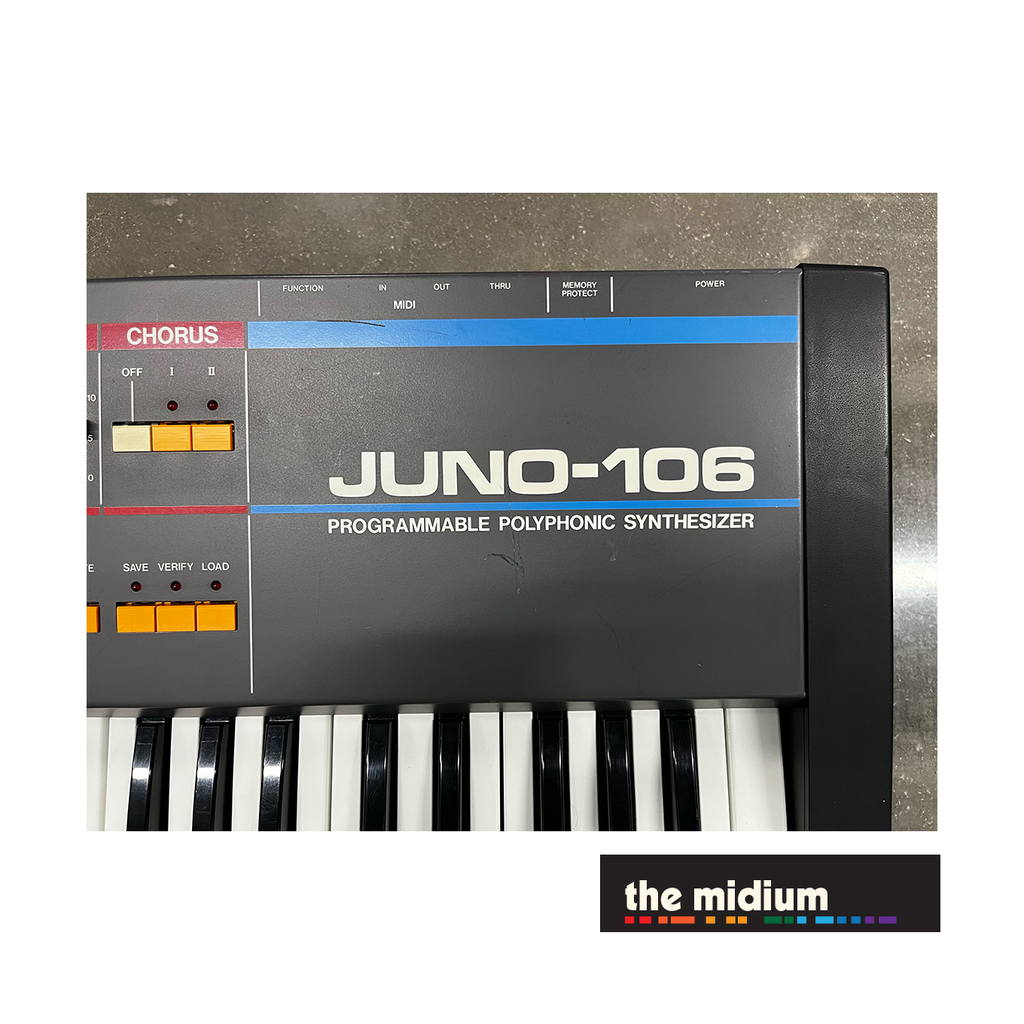

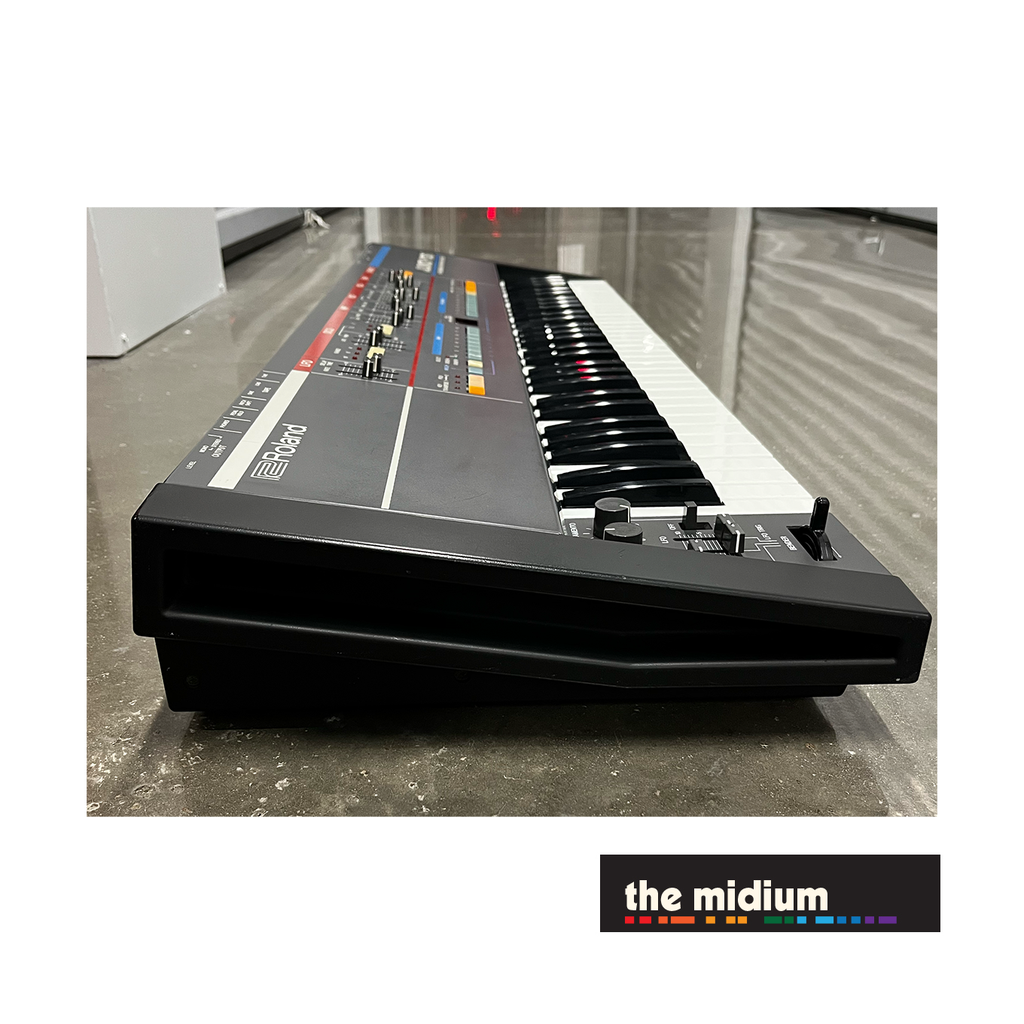

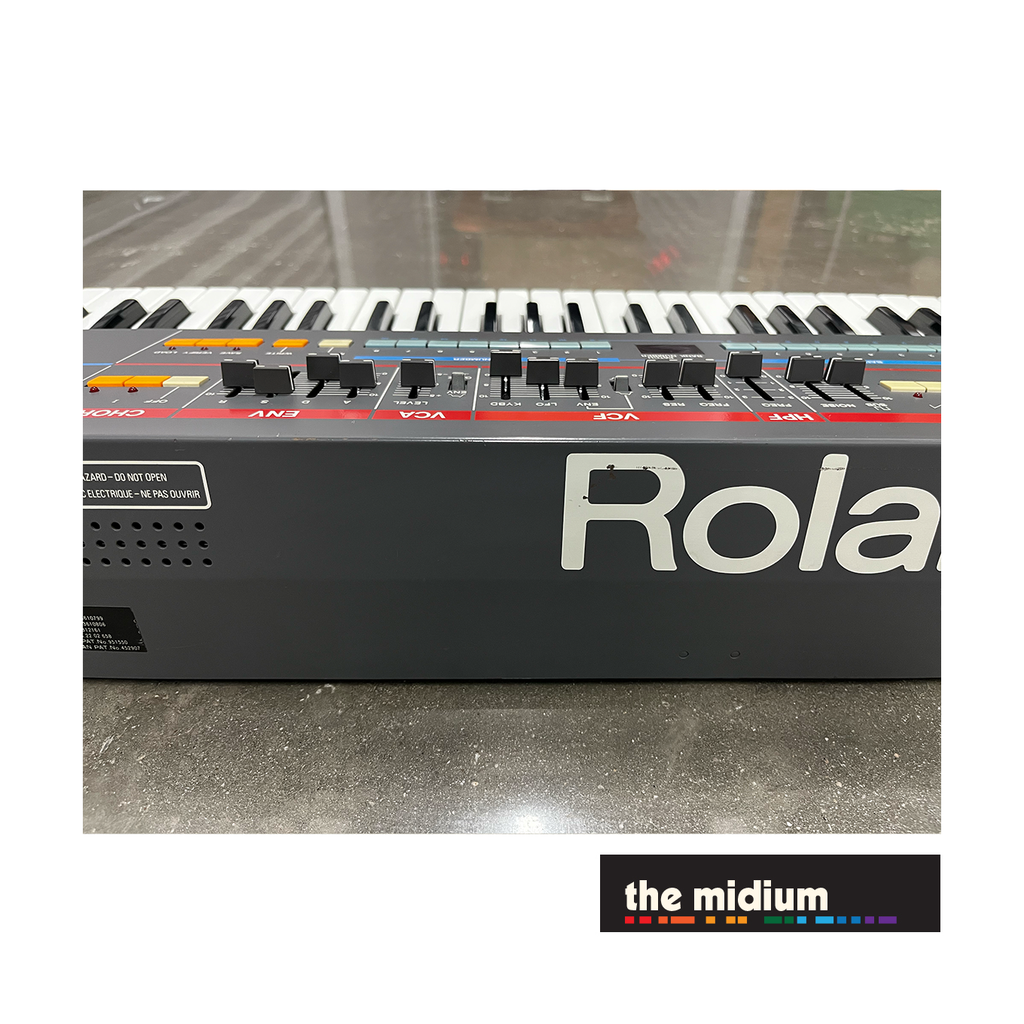

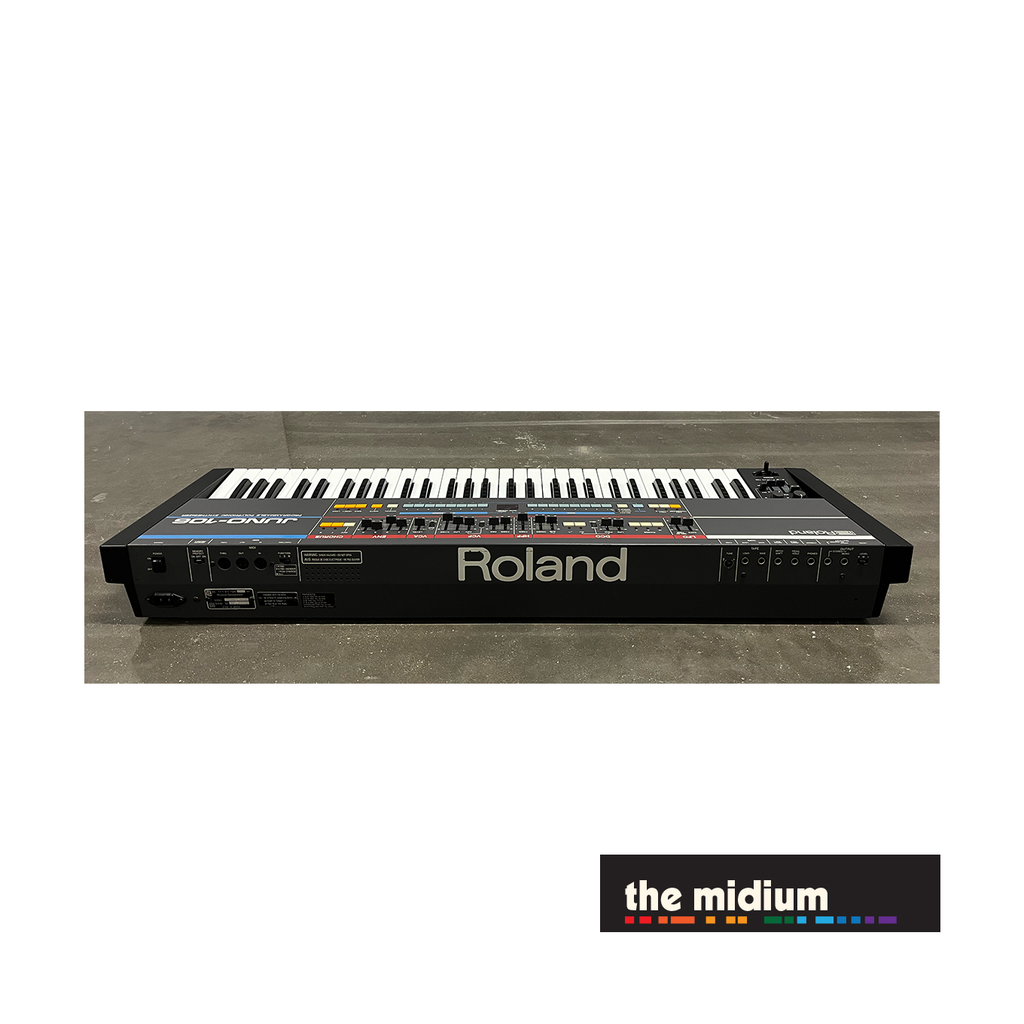

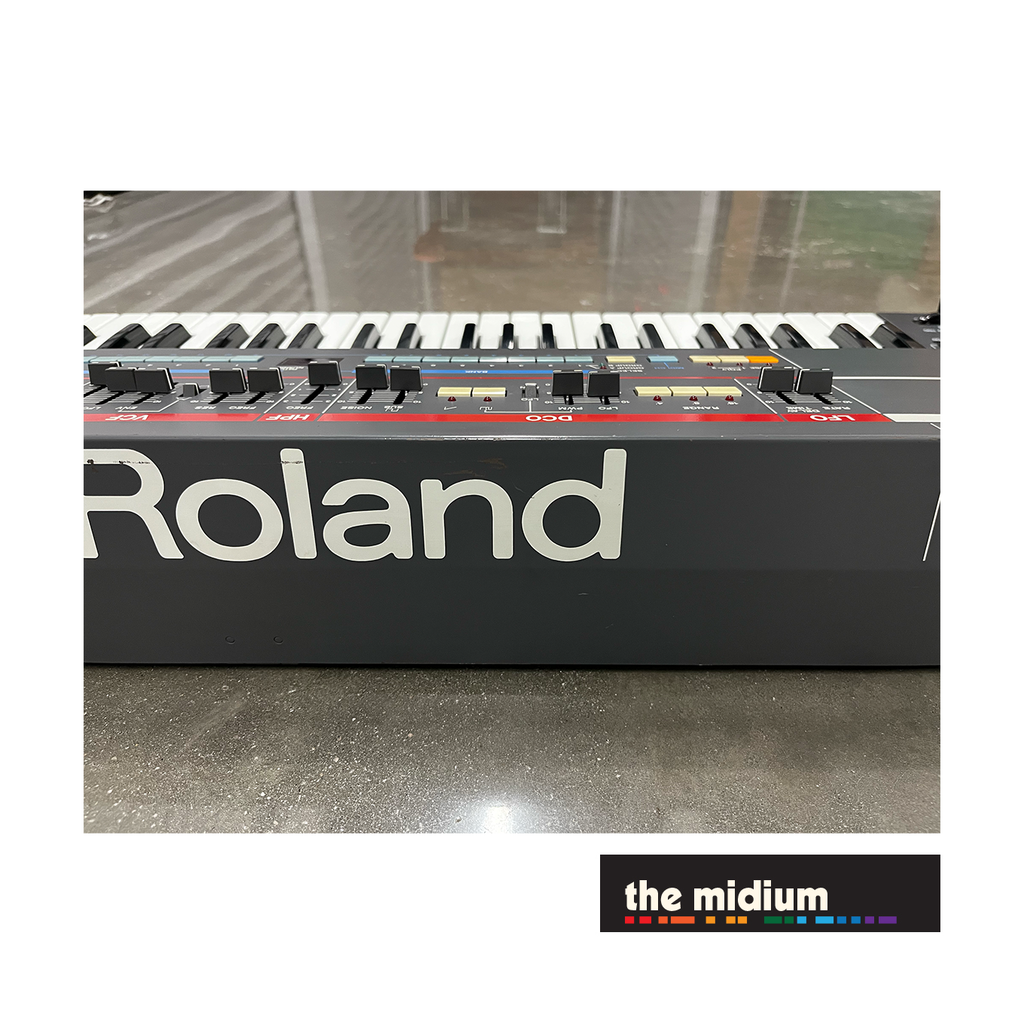

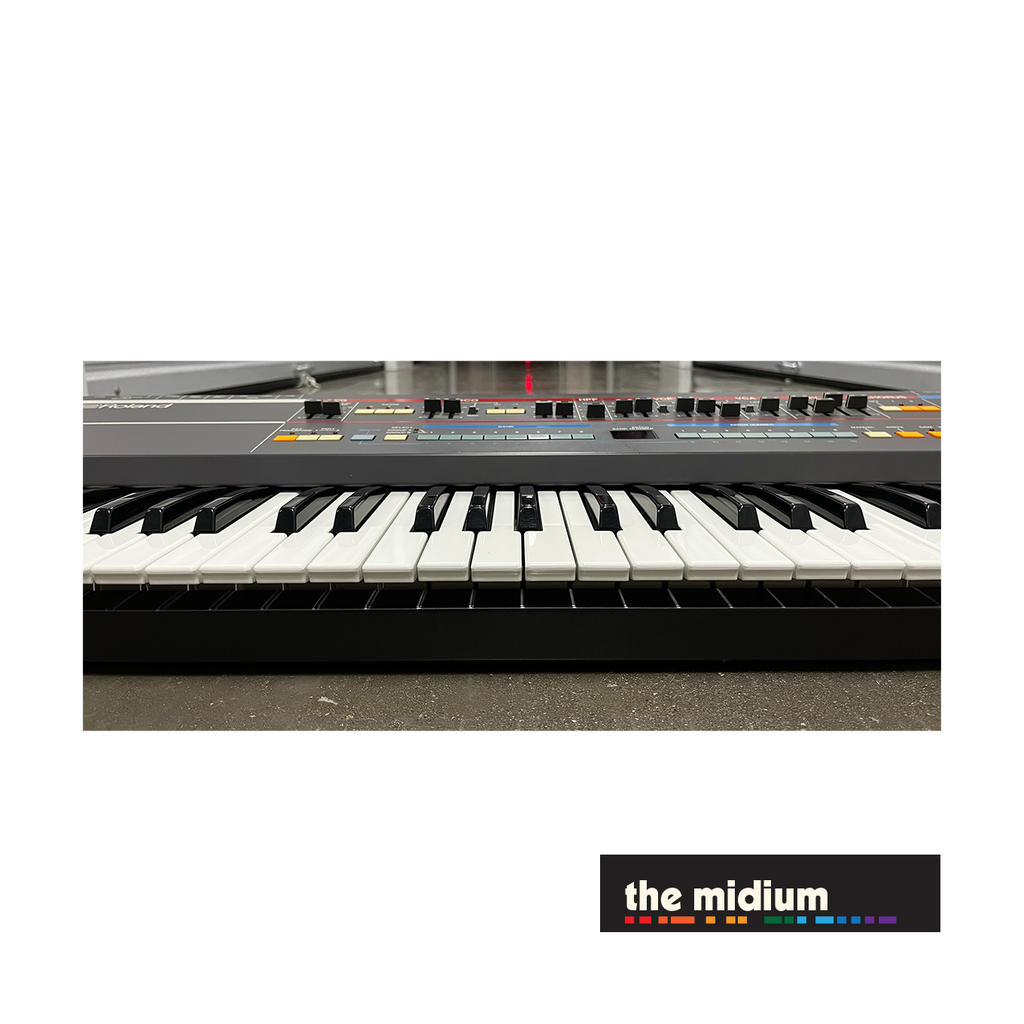

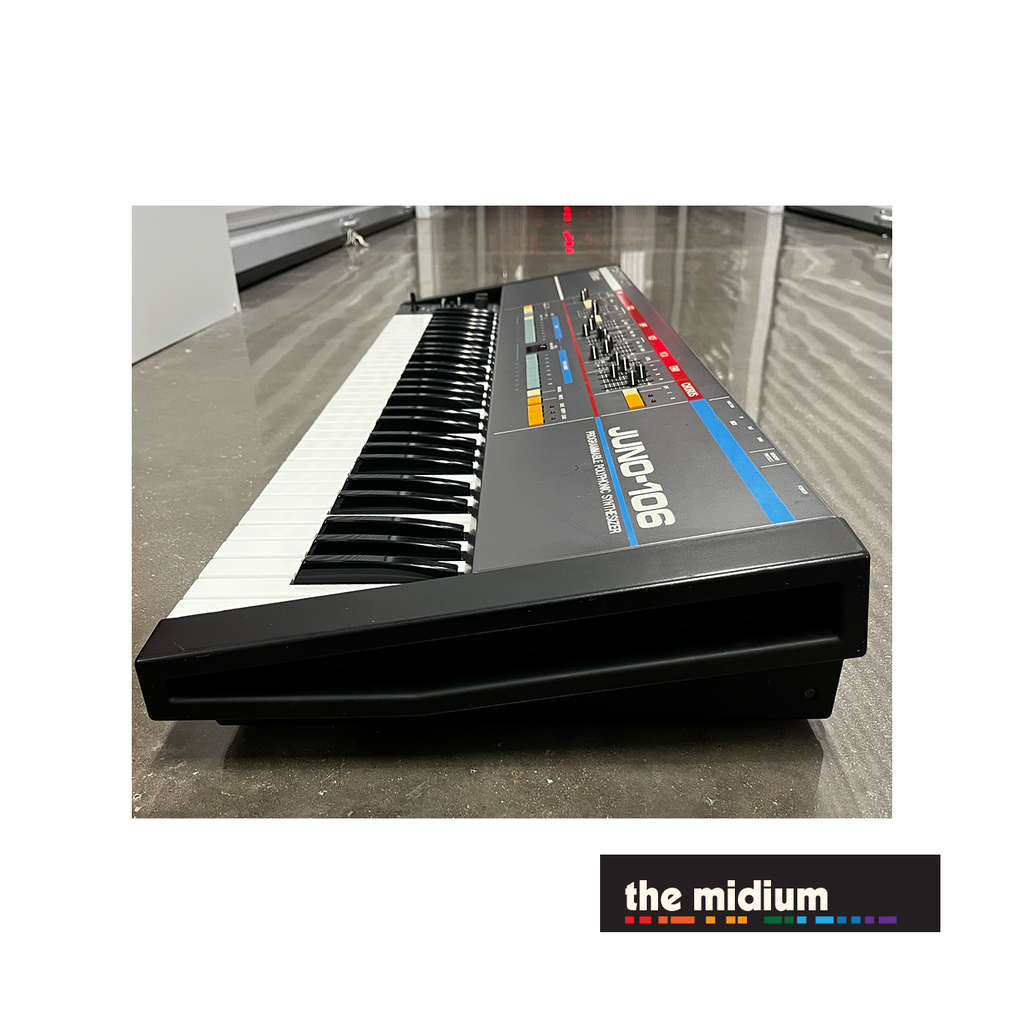

The interior section holding the circuit boards has been cleaned by The Midium®, and the keys have been cleaned without having to disassemble the keybed. There are scratches to the top panel, side panels, bottom panel, and rear, with oxidation showing on the rear panel in a small spot on the left and on a scratch. We have done everything possible, within reason, to show any imperfections in the photos. Please take your time reviewing each image while looking for all details. Please contact us if you need more photos to see more details.
INTRO.*

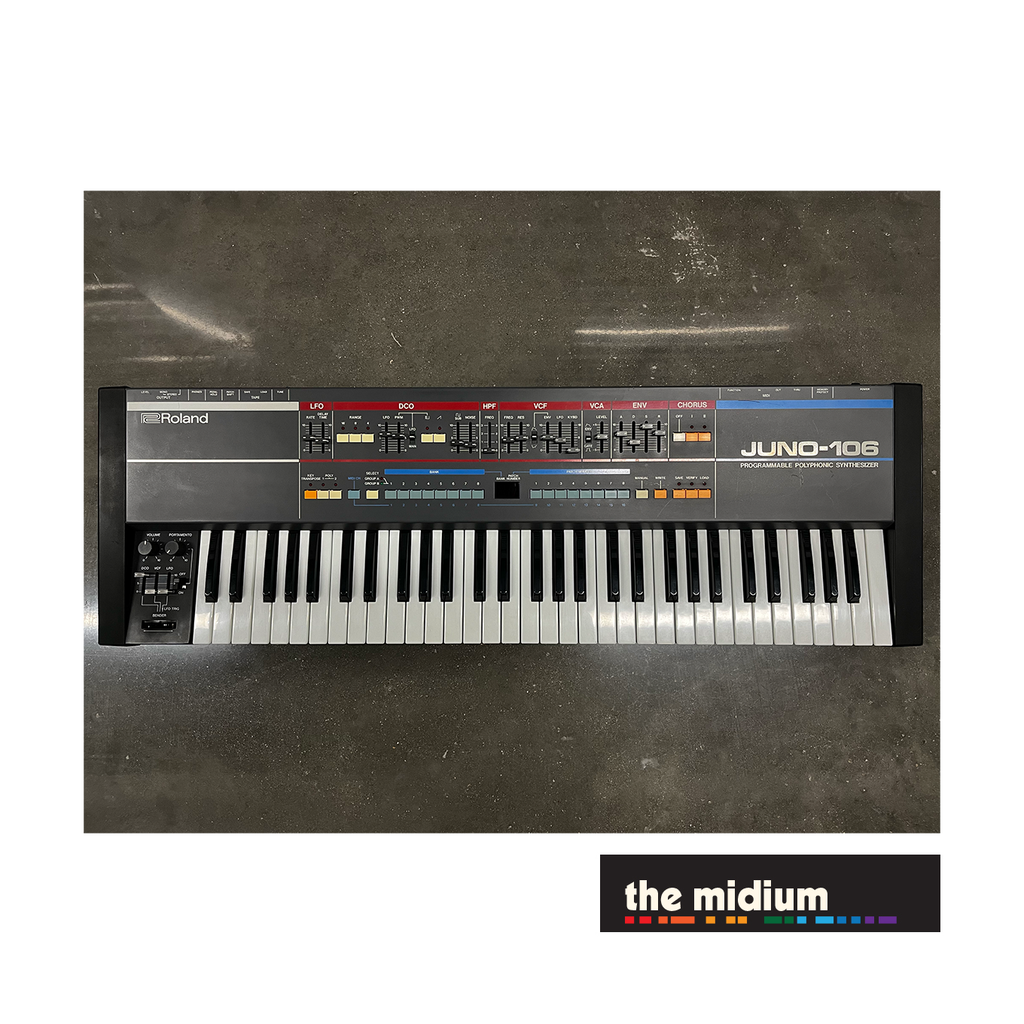

- The Roland Juno-106 is a 61-key, six voice fully programmable polyphonic synthesizer
- The digitally controlled oscillator (DCO) guarantees an extremely stable pitch.
- The Juno-106 is the complete 6 voice synthesizer provided with 6 VCF's, 6 VCA's, and 6 ENV's [Curator's Edit: all one per voice, for a total of six].
- The Juno-106 includes memory capacity to retain up to 128 different patch programs.
- The Juno-106 features battery back up system to retain the programs even when switched off.
- If connecting the Pedal Switch to the PATCH SHIFT jack, you can call the 8 patch programs stored in the same bank one after another, simply by pressing the pedal.
- Transposition to any key is possible by the Transpose function.
- The Portamento function is provided.
- The Chorus effect produces rich and expansive sounds.
- Featured with a MIDI BUS [Curator's Edit: MIDI in, out, and thru], the Juno-106 can be set up with other MIDI devices.
*source: Roland JUNO-106 manual, 1984, p. 1.
SPECS.^
-

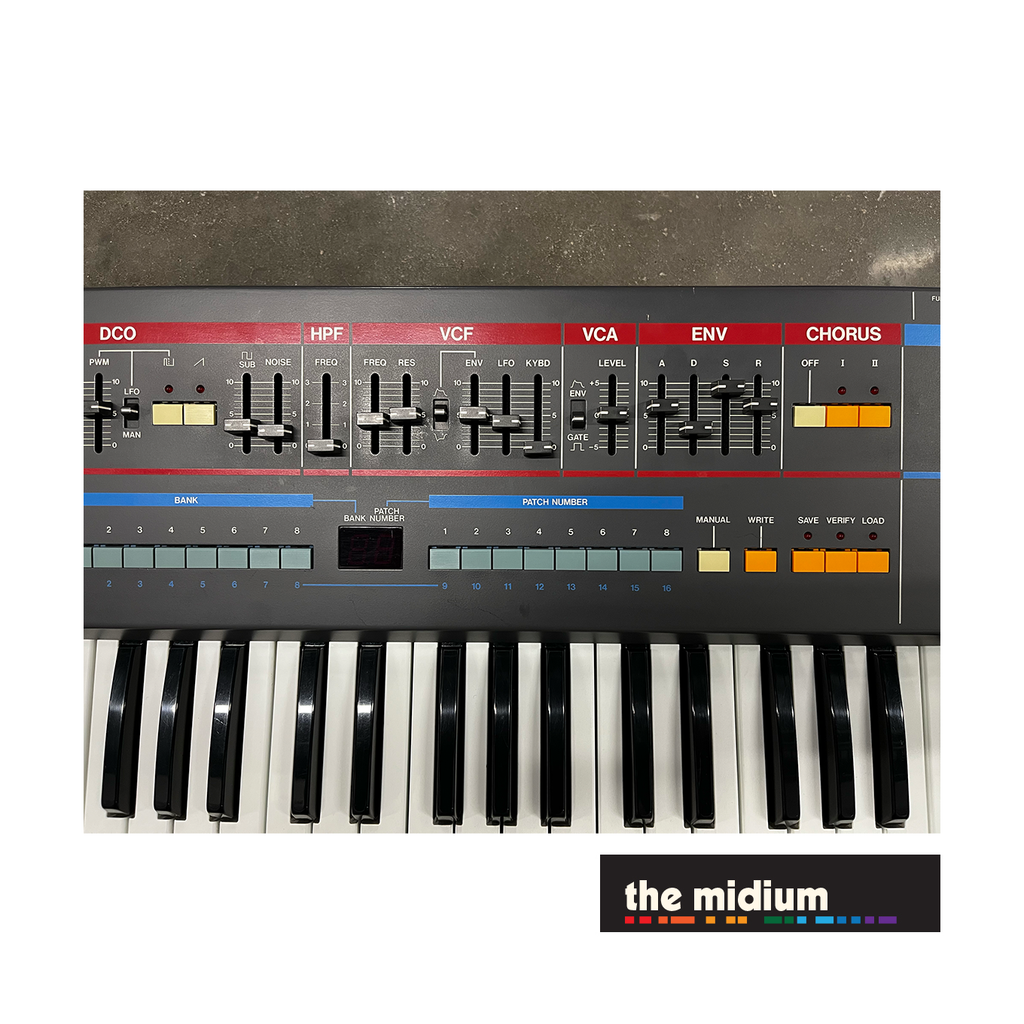

KEYBOARD
- 61 keys, 5 octaves
-
DCO
- LFO Modulation Knob
- Pulse Width Modulation Knob
- PWM Mode Switch (LFO/MANUAL)
- Pulse Wave (ON/OFF) & waveform Indicator
- Sawtooth (ON/OFF) & waveform Indicator
- Range Selector Buttons (16", 8", 4")
- Sub Oscillator Level Knob
- Noise Level Knob
-
HPF
- Cutoff Frequency Knob (0/1/2/3)
-
VCF
- Cutoff Frequency Knob
- Resonance Knob (0~Self Oscillation)
- ENV Modulation Knob
- Polarity Switch
- LFO Modulation Knob
- Key Follow Knob (0~100%)
-
VCA
- Control Signal Selector Switch
- VCA Level Knob
-
ENV
- Attack Time Knob (1.5ms~3s)
- Decay Time Knob (1.5ms~12s)
- Sustain Level Knob (0~100%)
- Release Time Knob (1.5ms~12s)
-
LFO
- Rate Knob (0.1 Hz~30Hz)
- Delay Time Knob (0~3s)
-

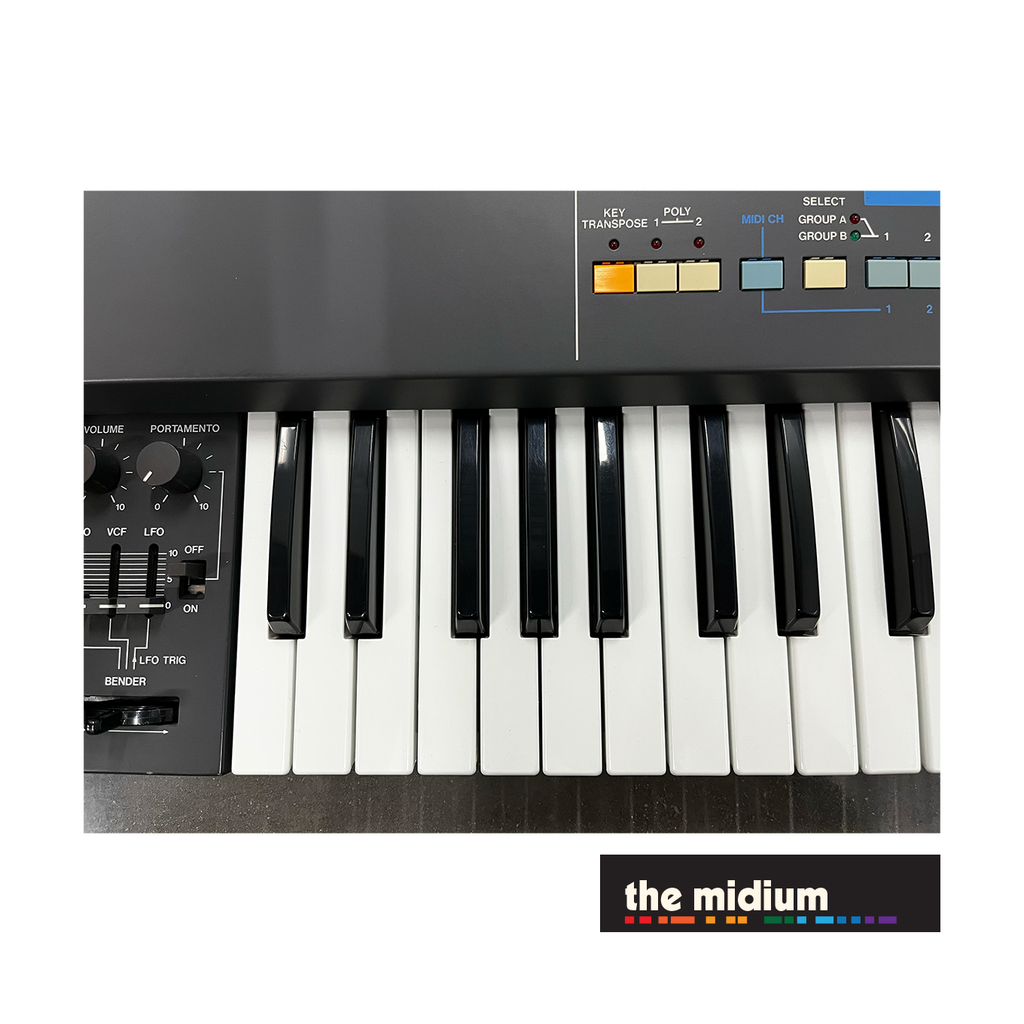

CONTROLLERS
- Volume Knob
- Portamento Time Knob
- Portamento Switch (ON/OFF)
- LFO Trigger Sens Knob
- Bend Sens (DCO) Knob
- Bend Sens (VCF) Knob Bender Lever
-
ASSIGN MODE
- Poly I Switch
- Poly II Switch
-
KEY TRANSPOSE
- Key Transpose Button & Indicator
-
MIDI CHANNEL
- MIDI Channel Selector Button
-

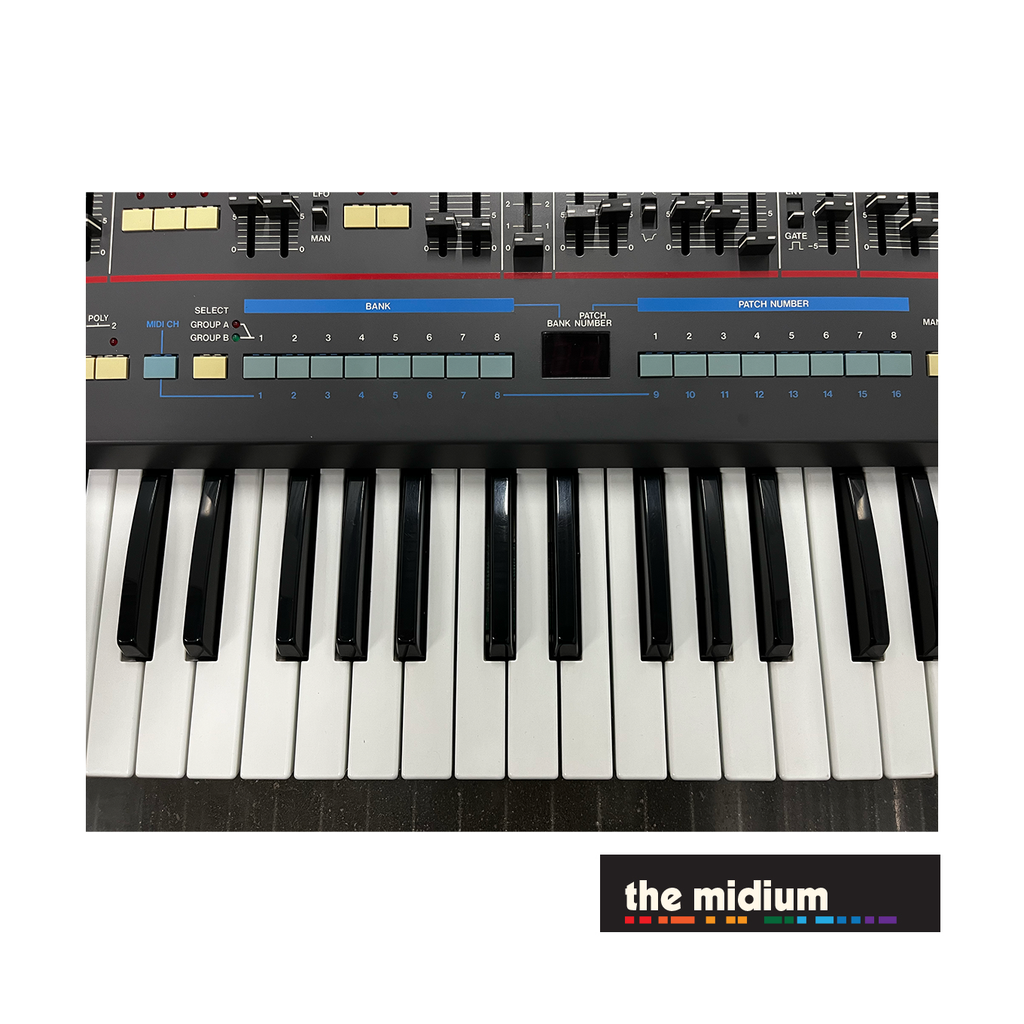

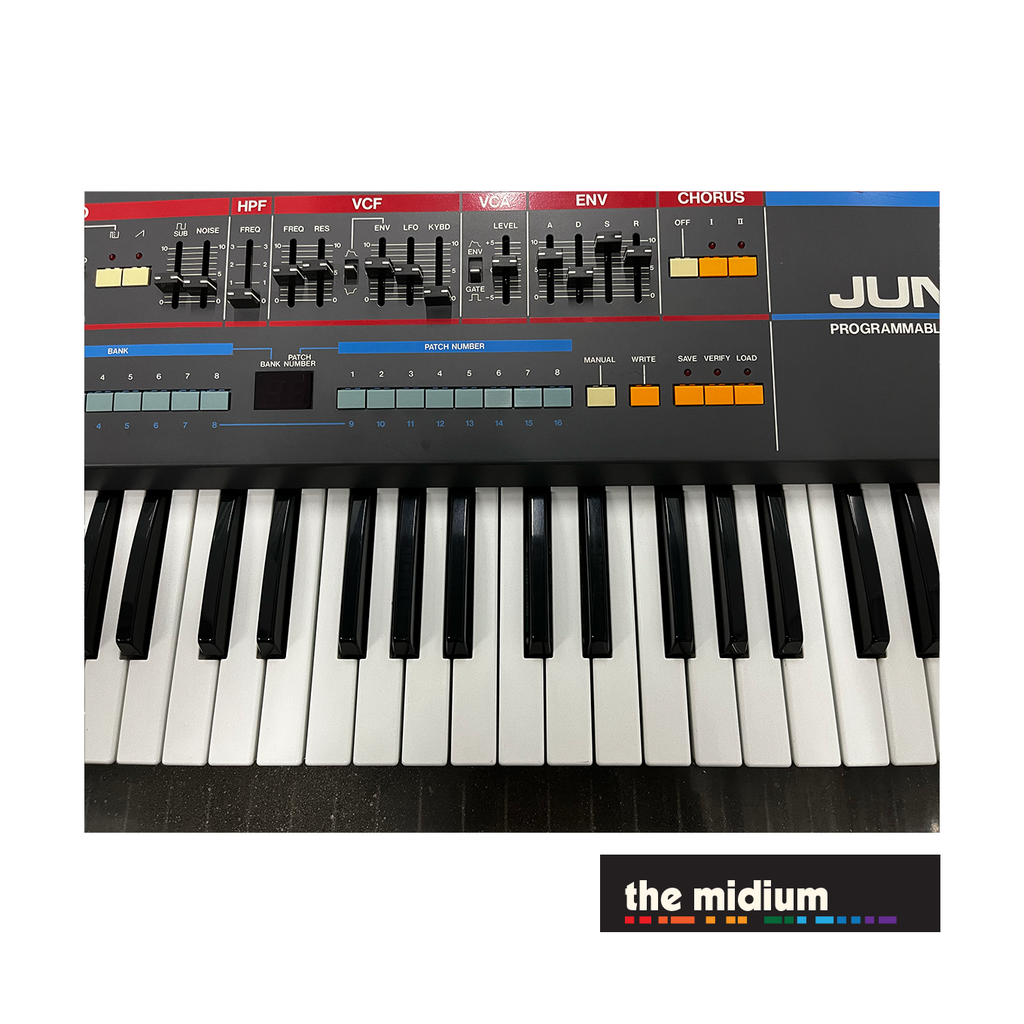

MEMORY
- Patch Number Buttons (1 ~8)
- Bank Buttons (1 ~8)
- Bank Group Selector Button (A/B)
- Manual Button
- Write Button
- Save Button & Indicator
- Verify Button & Indicator
- Load Button & Indicator
- Program Number/MIDI Channel Display Window
-
CHORUS
- OFF/ I / II Switches
-
POWER
- Power switch
-

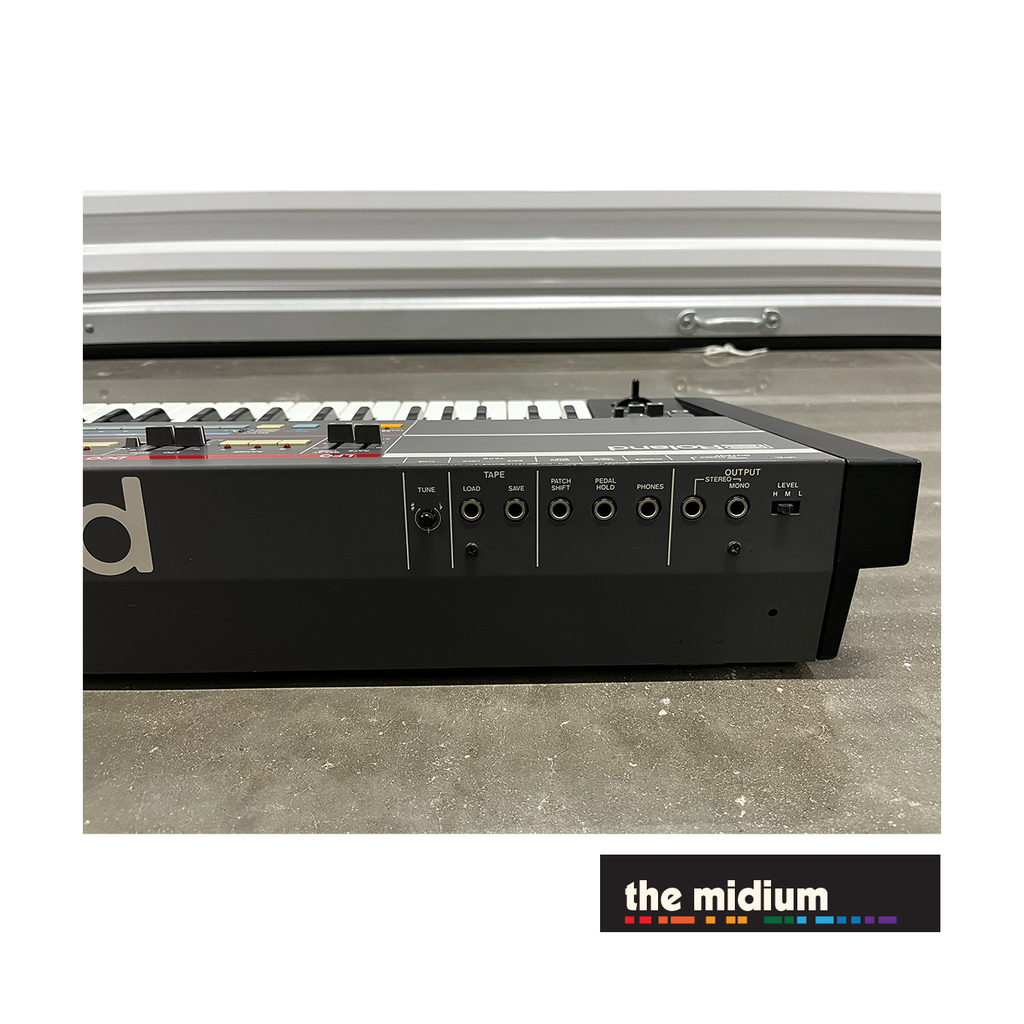

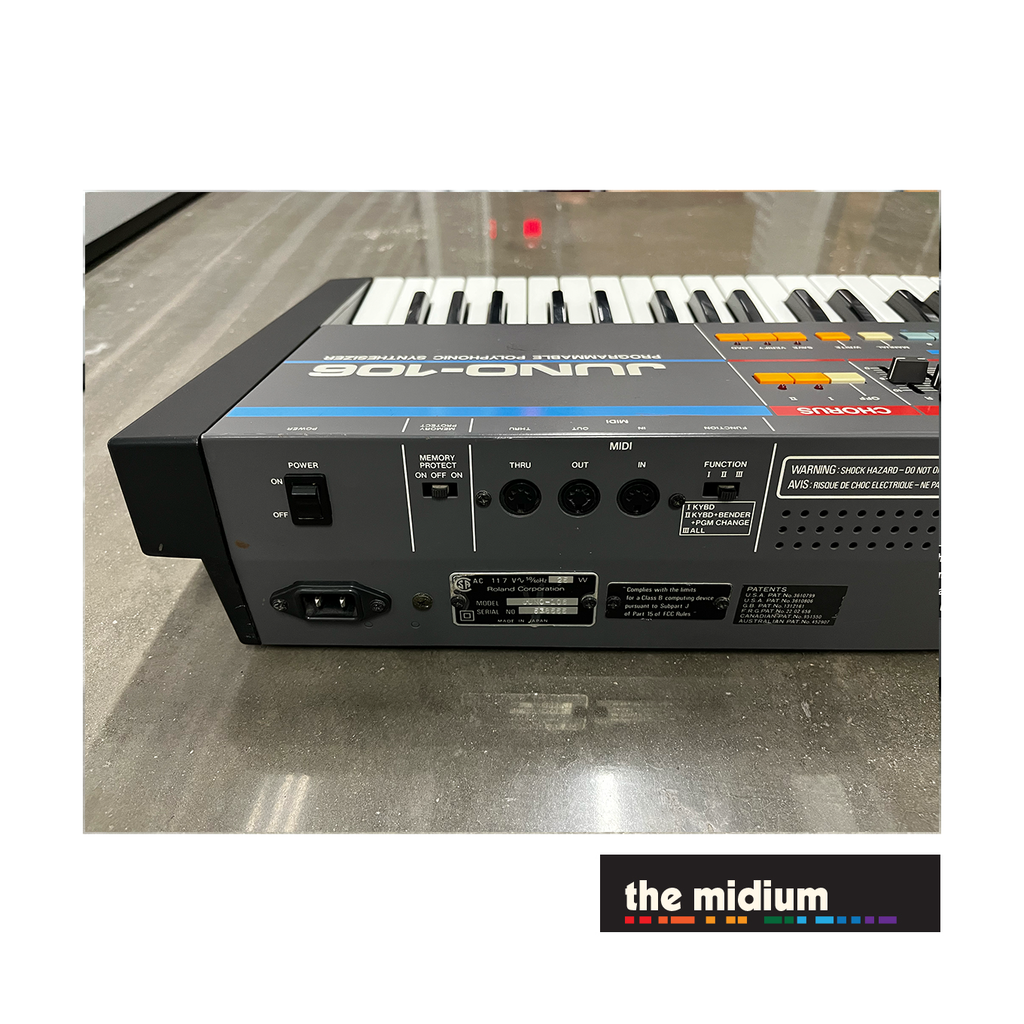

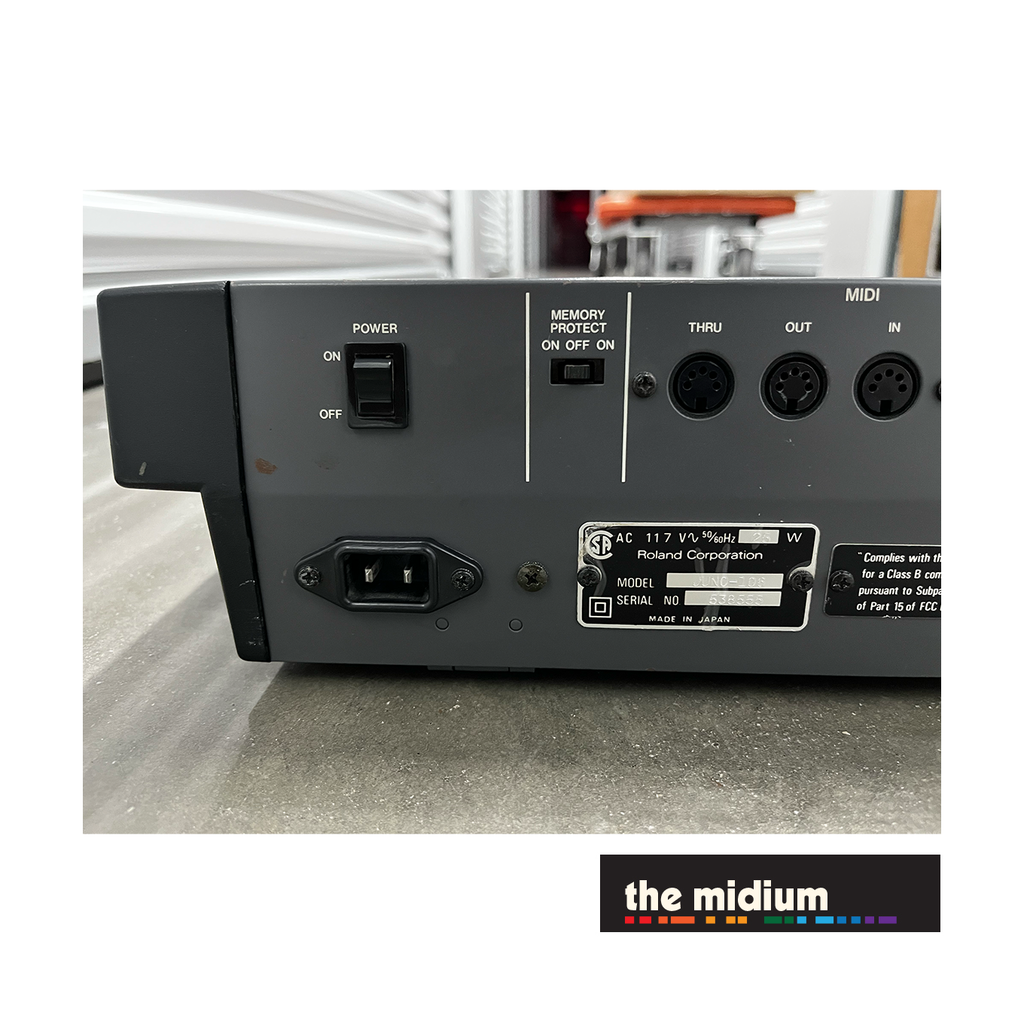

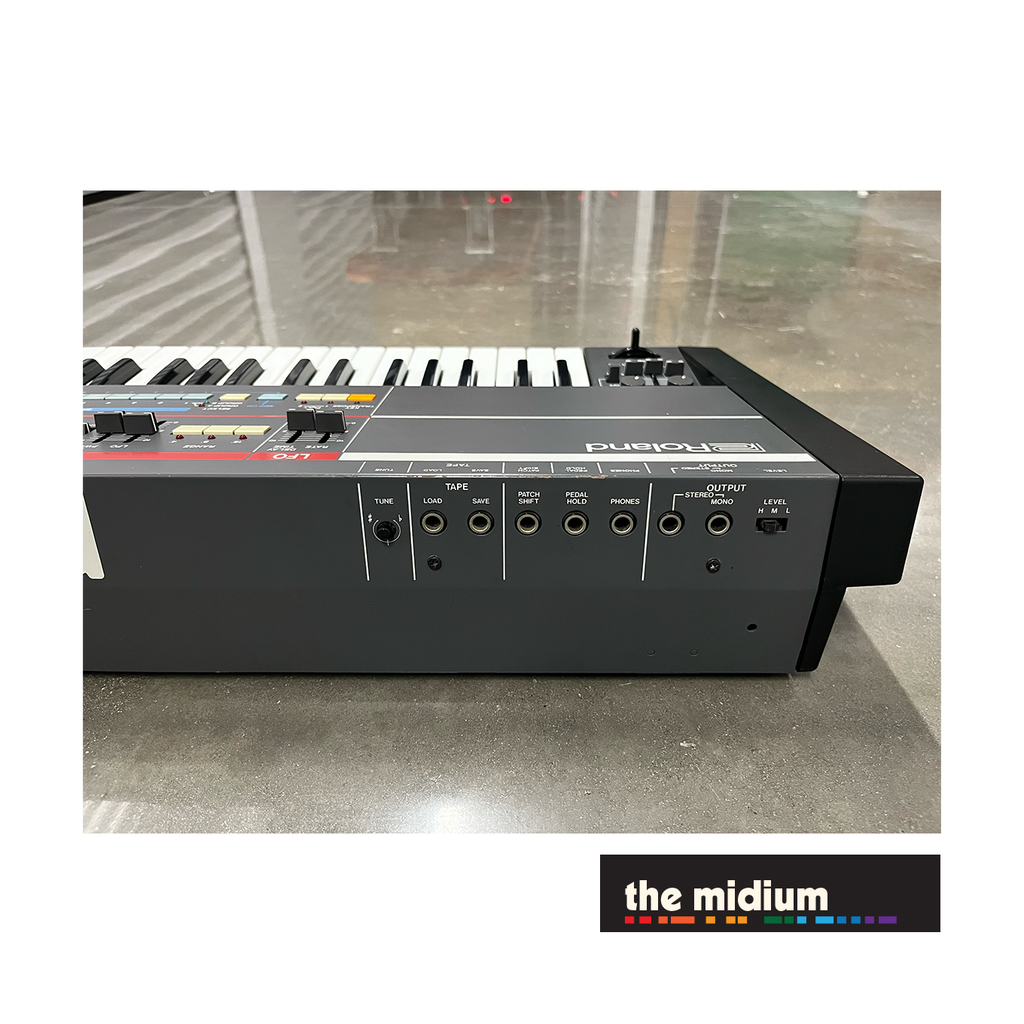

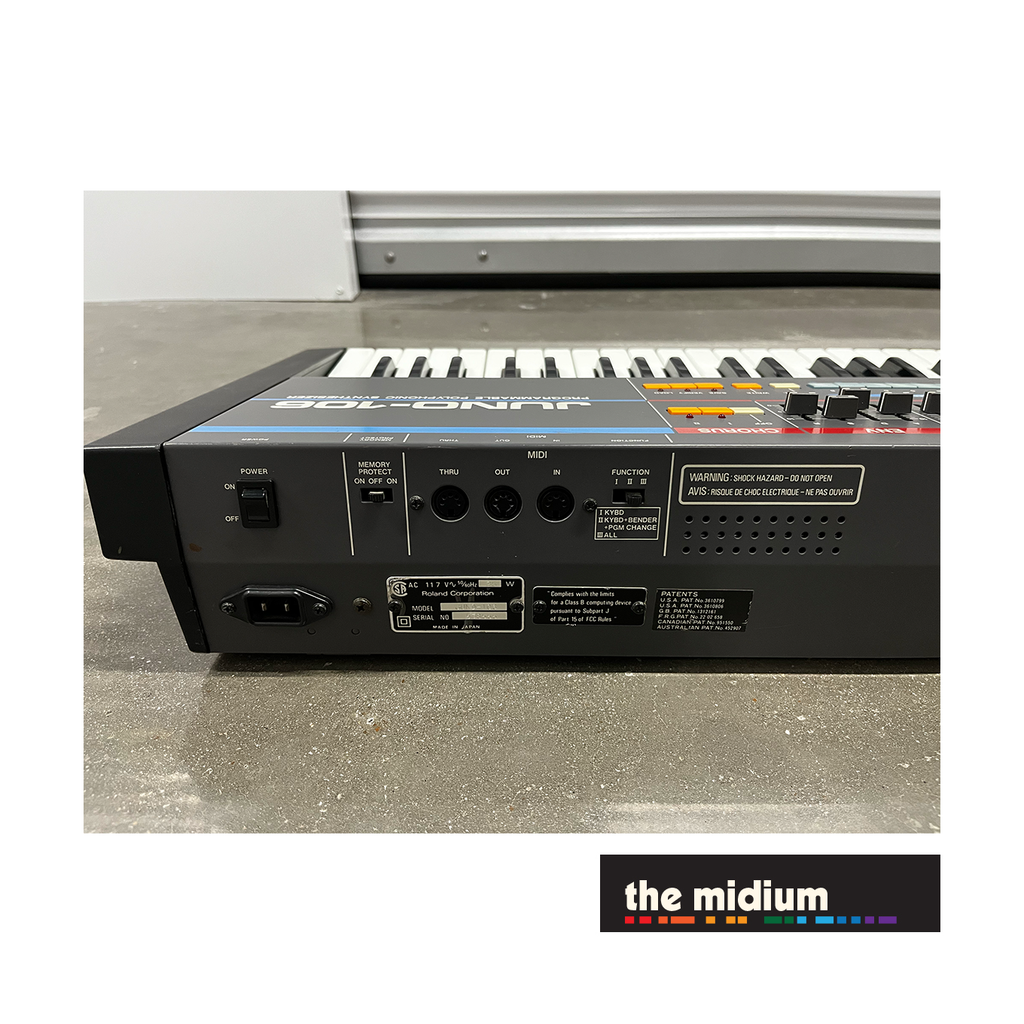

REAR PANEL
- Output Jacks (Mono, Stereo)
- Phones Jack (Stereo)
- Pedal Hold Jack (DP-2)
- Patch Shift Jack (DP-2)
- Save Jack
- Load Jack
- Memory Protect Switch
- MIDI Function Selector Switch (I, 11, 111)
- MIDI In Jack
- MIDI Out Jack
- MIDI Thru Jack
- Tune Adjust Knob (±50 cent)
-
DIMENSIONS
- 992(W)x320(D)x 120(H)mm/ 39--1/16(W)x 12-5/8(D)x4-11/16(H) inch
-
WEIGHT
- 10 kg. / 22 lb.
- 10 kg. / 22 lb.
^source: Roland JUNO-106 manual, 1984, p. 32-33.
