LZX Industries' description of the LZX Industries DSG3 dual shape generator (12hp)



DUAL SHAPE GENERATOR.

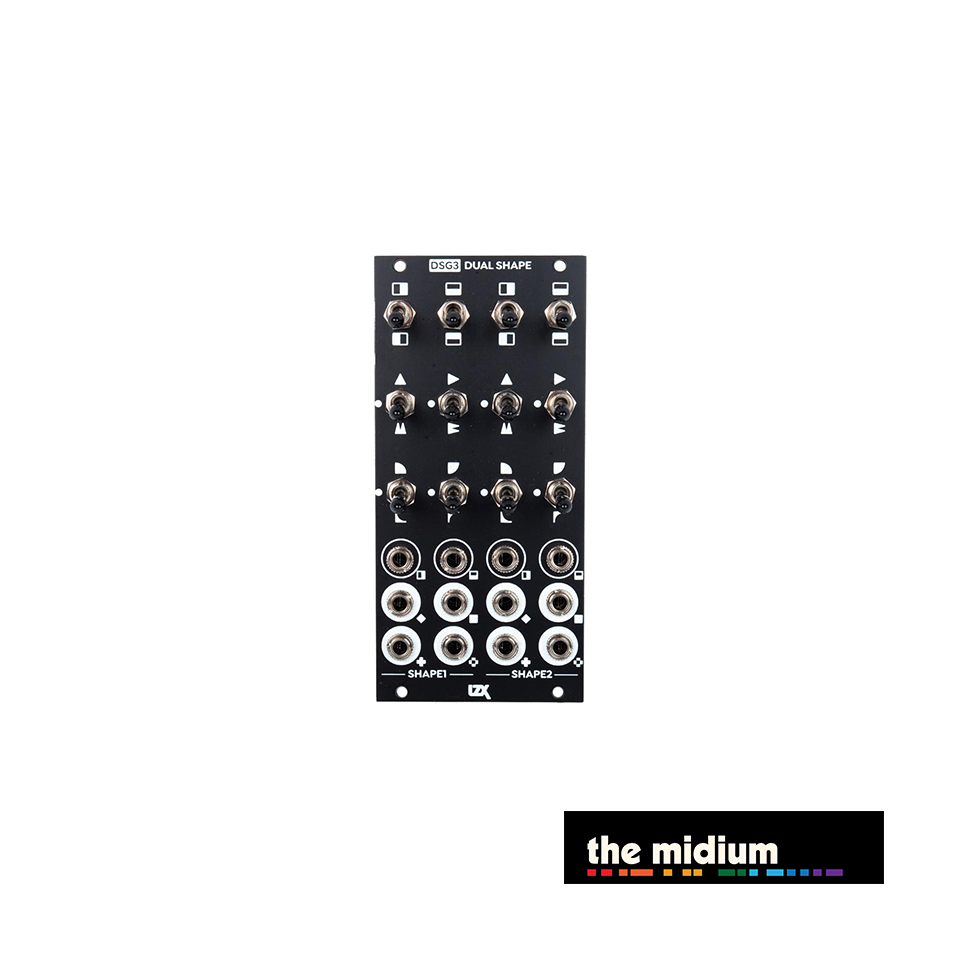

DSG3 generates a variety of 2D planes using internal ramp generators and long list of powerful wave shaping functions.

SPECS.

DIMENSIONS

Width, 12HP
Mounting Depth, 42mm

VIDEO SYNC

Rear RCA Sync Input Jack
Rear RCA Sync Output Jack

POWER CONSUMPTION

+12V @ 350mA

POWER ENTRY

Rear DC Barrel Jack
Rear EuroRack 16 Pin Header
